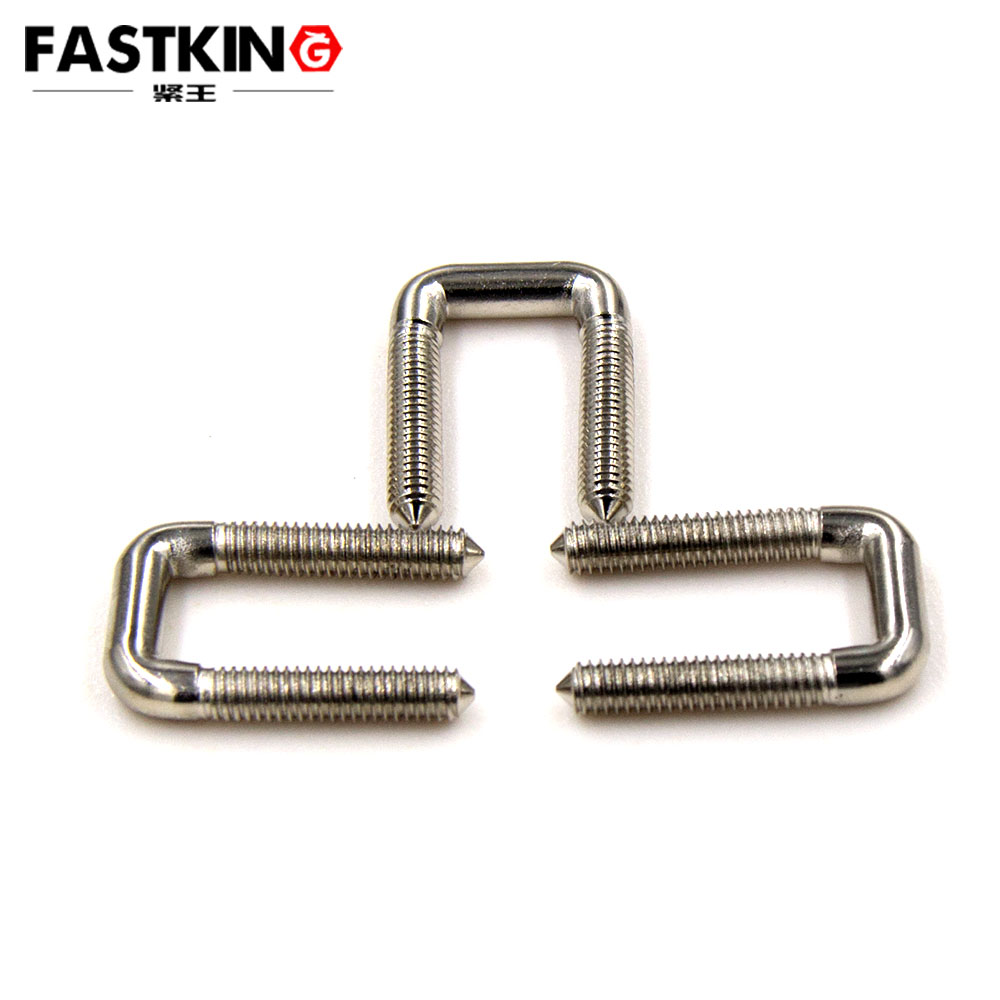

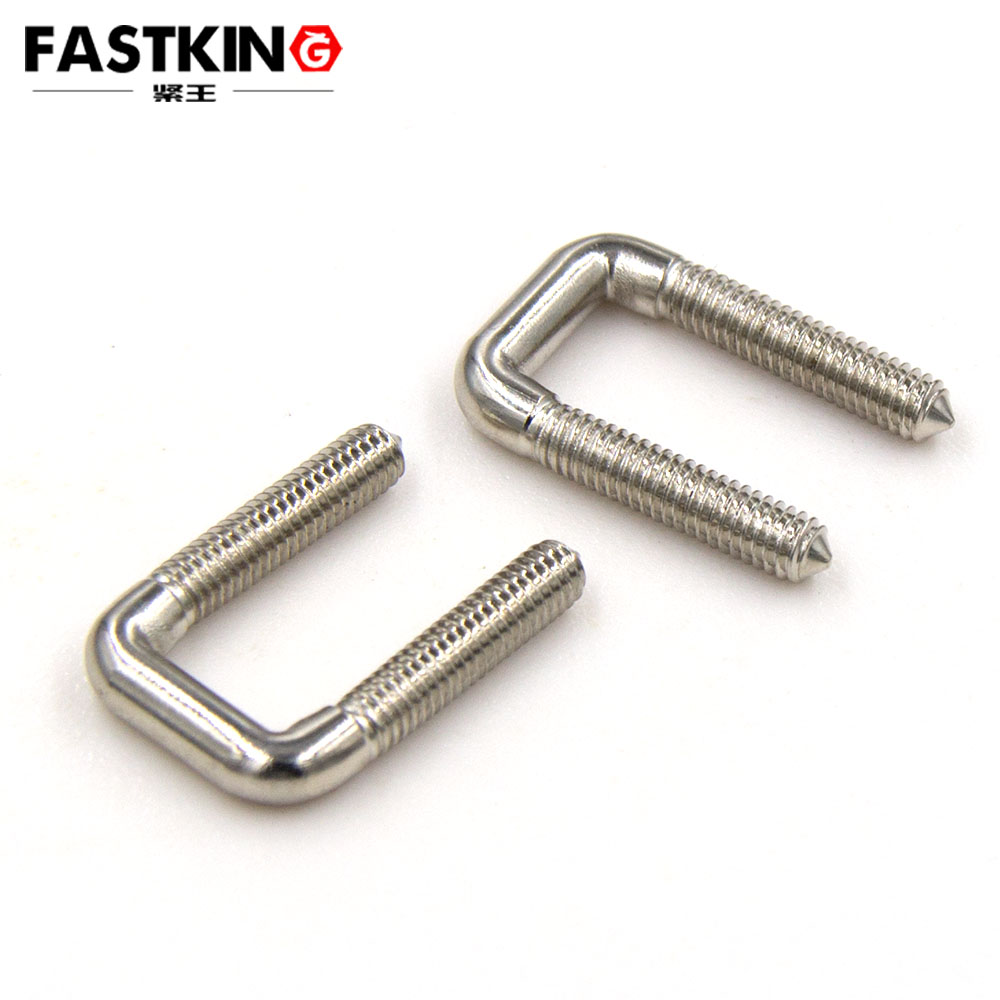

What Are U-Bolt Square Clamp Pipe Clips?
At its core, a U-bolt square clamp pipe clip is a specialized fastening device designed to hold pipes firmly in place. Its name derives from its distinctive "U" shape, which wraps around the pipe, and the square clamp base that attaches to mounting surfaces such as walls, beams, or brackets. The U-bolt itself is typically made of metal, with threaded ends that pass through the square clamp. When nuts are tightened onto these threaded ends, the U-bolt exerts uniform pressure around the pipe, creating a secure grip that resists lateral and vertical movement.
Unlike round clamps or single-bolt designs, the square clamp base offers enhanced stability. The flat, square shape distributes weight evenly across the mounting surface, reducing the risk of the clamp shifting or the mounting point becoming damaged over time. This design is particularly advantageous in applications where pipes carry heavy fluids, operate under high pressure, or are exposed to external forces such as vibration from machinery or wind loads in outdoor installations.
Key Features and Materials
U-bolt square clamp pipe clips are engineered with several key features to meet the diverse needs of different industries. One of the most important aspects is the material composition, which directly impacts the clip’s durability, corrosion resistance, and load-bearing capacity.
- Carbon Steel: The most common material for U-bolt square clamps, carbon steel offers high strength and affordability. It is ideal for indoor, dry environments where corrosion risk is low, such as residential plumbing or indoor HVAC systems. To enhance corrosion resistance, carbon steel clamps are often coated with zinc (galvanized) or epoxy, making them suitable for semi-outdoor or moderately humid conditions.
- Stainless Steel: For applications requiring maximum corrosion resistance and durability, stainless steel U-bolt clamps are the top choice. They are resistant to rust, chemicals, and extreme temperatures, making them ideal for outdoor piping, industrial facilities handling corrosive fluids, or marine environments. Stainless steel grades like 304 and 316 are commonly used, with 316 offering superior resistance to saltwater and harsh chemicals.
- Non-Metal Options: In some specialized cases, non-metal U-bolt square clamps made of materials like plastic or fiberglass are used. These are lightweight, non-conductive, and highly resistant to chemicals, making them suitable for electrical piping systems or applications where metal corrosion is a major concern, such as in chemical plants or water treatment facilities.
Another key feature is the size and compatibility. U-bolt square clamps come in a wide range of sizes to fit different pipe diameters, from small ½-inch pipes used in residential plumbing to large 12-inch or larger pipes in industrial settings. It is crucial to select a clamp that matches the pipe’s outer diameter precisely; a clamp that is too loose will fail to secure the pipe, while one that is too tight may damage the pipe or restrict its expansion and contraction due to temperature changes.
Additionally, many U-bolt square clamps are designed with adjustable features. Some models have slotted holes in the square base, allowing for minor adjustments in the mounting position to accommodate variations in the structural layout. Others come with rubber or foam liners inside the U-bolt, which provide a cushion between the clamp and the pipe. These liners not only prevent scratches on the pipe’s surface but also reduce vibration transmission, minimizing noise and extending the pipe’s lifespan.
Types of U-Bolt Square Clamp Pipe Clips
Based on their design and application, U-bolt square clamp pipe clips can be categorized into several types:
- Standard U-Bolt Square Clamps: These are the most basic type, featuring a simple U-bolt and a solid square base. They are suitable for general-purpose applications where moderate holding force is required, such as securing water pipes, gas lines, or electrical conduits in residential and commercial buildings.
- Heavy-Duty U-Bolt Square Clamps: Built with thicker metal and larger thread sizes, heavy-duty clamps are designed to handle high loads and extreme conditions. They are commonly used in industrial settings, such as securing large-diameter pipes in power plants, refineries, or manufacturing facilities. The square base of heavy-duty clamps is often reinforced with additional ribs or thicker material to prevent bending or deformation under pressure.
- Insulated U-Bolt Square Clamps: These clamps are equipped with insulation materials, such as rubber, foam, or neoprene, between the U-bolt and the pipe. The insulation serves two main purposes: it prevents heat transfer between the pipe and the mounting structure (critical for HVAC systems or pipes carrying hot/cold fluids) and reduces condensation on cold pipes, which can lead to water damage or mold growth. Insulated clamps are also effective at reducing vibration and noise, making them ideal for use in hospitals, offices, or residential areas where quiet operation is important.
- Double U-Bolt Square Clamps: For pipes that require extra stability or support, double U-bolt clamps feature two parallel U-bolts attached to a single square base. This design provides twice the holding force of a standard clamp, making it suitable for large, heavy pipes or applications where the pipe is subject to significant movement or vibration, such as in industrial machinery or transportation systems (e.g., pipelines on ships or trains).
Installation Guidelines for U-Bolt Square Clamp Pipe Clips
Proper installation is crucial to ensuring the effectiveness and safety of U-bolt square clamp pipe clips. Follow these step-by-step guidelines for a successful installation:
- Prepare the Work Area: Before starting, ensure the work area is clean, dry, and free of obstacles. Turn off any fluids or gases flowing through the pipe to prevent leaks or accidents. If working at height, use proper safety equipment such as ladders or scaffolding.
- Select the Correct Clamp Size: Measure the outer diameter of the pipe using a tape measure or caliper. Choose a U-bolt square clamp that matches this diameter exactly. Refer to the manufacturer’s specifications to ensure the clamp’s load-bearing capacity is sufficient for the pipe’s weight and the application’s requirements.
- Position the Clamp: Place the U-bolt around the pipe, ensuring the curved part of the U-bolt fits snugly against the pipe’s surface. If the clamp has a rubber or foam liner, make sure it is properly aligned to cover the area where the U-bolt contacts the pipe.
- Attach the Square Base: Slide the threaded ends of the U-bolt through the holes in the square base. Position the square base against the mounting surface (wall, beam, bracket, etc.) and ensure it is level and aligned correctly. For slotted base clamps, adjust the position as needed to align with the mounting holes in the structural element.
- Secure the Clamp: Place washers and nuts onto the threaded ends of the U-bolt. Tighten the nuts evenly using a wrench, ensuring that the pressure is distributed uniformly around the pipe. Avoid over-tightening, as this can damage the pipe or the clamp, or restrict the pipe’s natural expansion and contraction. Refer to the manufacturer’s torque specifications for the correct tightening force.
- Inspect the Installation: After installation, check the clamp to ensure it is secure and the pipe is held firmly in place. Test for any movement by gently pushing or pulling on the pipe. If the clamp feels loose, re-tighten the nuts as needed. For insulated clamps, verify that the insulation is intact and properly positioned to prevent heat transfer or condensation.
Selection Criteria for U-Bolt Square Clamp Pipe Clips
Choosing the right U-bolt square clamp pipe clip requires considering several factors to ensure it meets the specific needs of the application:
- Pipe Diameter and Material: The clamp must match the pipe’s outer diameter and be compatible with the pipe’s material. For example, a stainless steel clamp is recommended for stainless steel pipes to prevent galvanic corrosion, while a plastic clamp may be suitable for PVC pipes.
- Environmental Conditions: Consider the environment where the clamp will be installed. If exposed to moisture, saltwater, or chemicals, select a corrosion-resistant material such as stainless steel or galvanized carbon steel. For high-temperature applications, choose a clamp made of heat-resistant materials that can withstand the operating temperature of the pipe.
- Load-Bearing Requirements: Calculate the total weight of the pipe, including the fluid it carries, to determine the required load-bearing capacity of the clamp. Heavy-duty clamps are necessary for large, heavy pipes, while standard clamps are sufficient for lighter applications.
- Vibration and Noise Considerations: If the pipe is subject to vibration (e.g., from pumps or machinery) or if noise reduction is important, select a clamp with a rubber or foam liner. These liners absorb vibration and reduce noise transmission, protecting the pipe and improving the comfort of the surrounding environment.
- Regulatory Compliance: Ensure the clamp meets relevant industry standards and codes, such as those set by the American Society of Mechanical Engineers (ASME), the International Organization for Standardization (ISO), or local building codes. Compliance with these standards ensures the clamp is safe and reliable for use in the intended application.
The Future of U-Bolt Square Clamp Pipe Clips
As the plumbing, HVAC, and industrial sectors continue to evolve, so too do the design and technology of U-bolt square clamp pipe clips. One of the key trends in the industry is the development of smart clamps equipped with sensors. These sensors can monitor factors such as clamp tightness, temperature, and vibration, providing real-time data to maintenance teams. This allows for proactive maintenance, early detection of potential issues (such as loose clamps or excessive vibration), and reduces the risk of pipe failure or system downtime.
Another trend is the use of sustainable materials in clamp manufacturing. With a growing focus on environmental sustainability, manufacturers are exploring eco-friendly materials such as recycled steel or bio-based plastics for clamp production. These materials not only reduce the environmental impact of manufacturing but also maintain the durability and performance of traditional clamps.
Additionally, advancements in manufacturing technology, such as 3D printing, are enabling the production of custom U-bolt square clamps with complex designs. This allows for greater flexibility in meeting the unique needs of specialized applications, such as irregular pipe shapes or limited installation spaces.
Conclusion
U-bolt square clamp pipe clips may be small in size, but their role in ensuring the stability, safety, and efficiency of piping systems cannot be overstated. From residential plumbing to heavy-duty industrial applications, these versatile components provide a secure and reliable solution for holding pipes in place. By understanding their features, types, installation methods, and selection criteria, engineers, contractors, and DIY enthusiasts can choose the right clamp for their specific needs, ensuring long-lasting and trouble-free pipe installations. As technology continues to advance, the future of U-bolt square clamp pipe clips looks promising, with innovations such as smart sensors and sustainable materials set to further enhance their performance and environmental friendliness. Whether you are building a new system or maintaining an existing one, investing in high-quality U-bolt square clamp pipe clips is a decision that will pay off in the form of increased safety, reduced maintenance costs, and extended system lifespan.
